Ultra narrow-linewidth frequency agile lasers
Leveraging the low loss Silicon Nitride platform and monolithic integration of piezoelectric materials, our Photonic Circuit-based lasers offer state of the art noise performance with high fidelity frequency modulation.
Key features

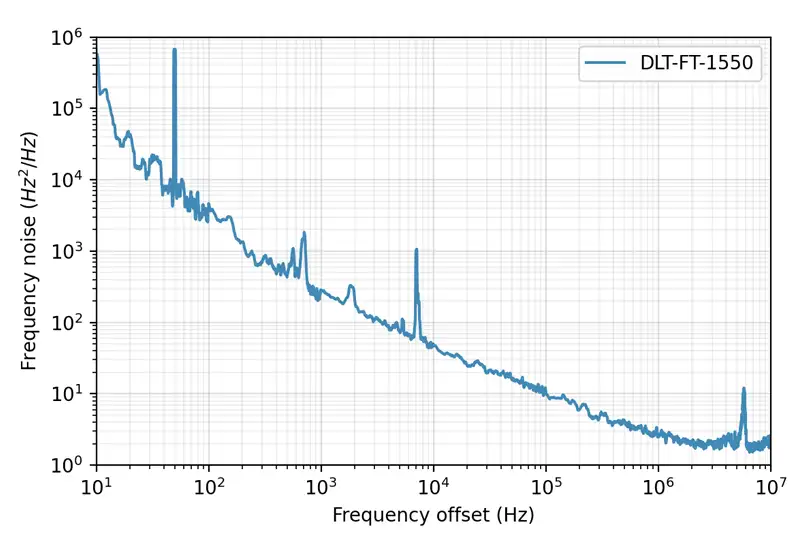

Ultra-narrow intrinsic linewidth
< 50 Hz
Highly linear frequency modulation
From DC to 1 MHz

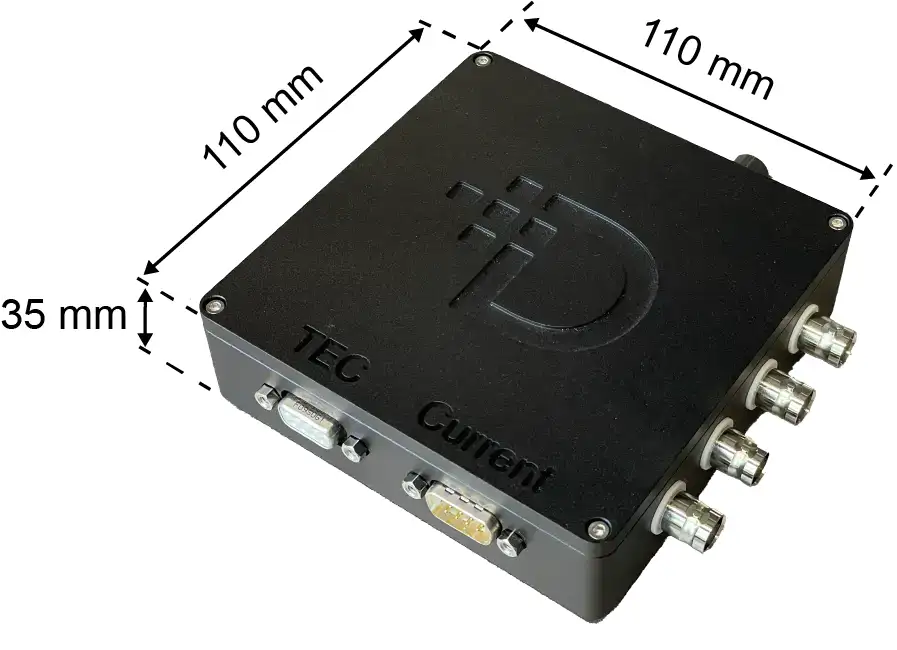

Compact form factor

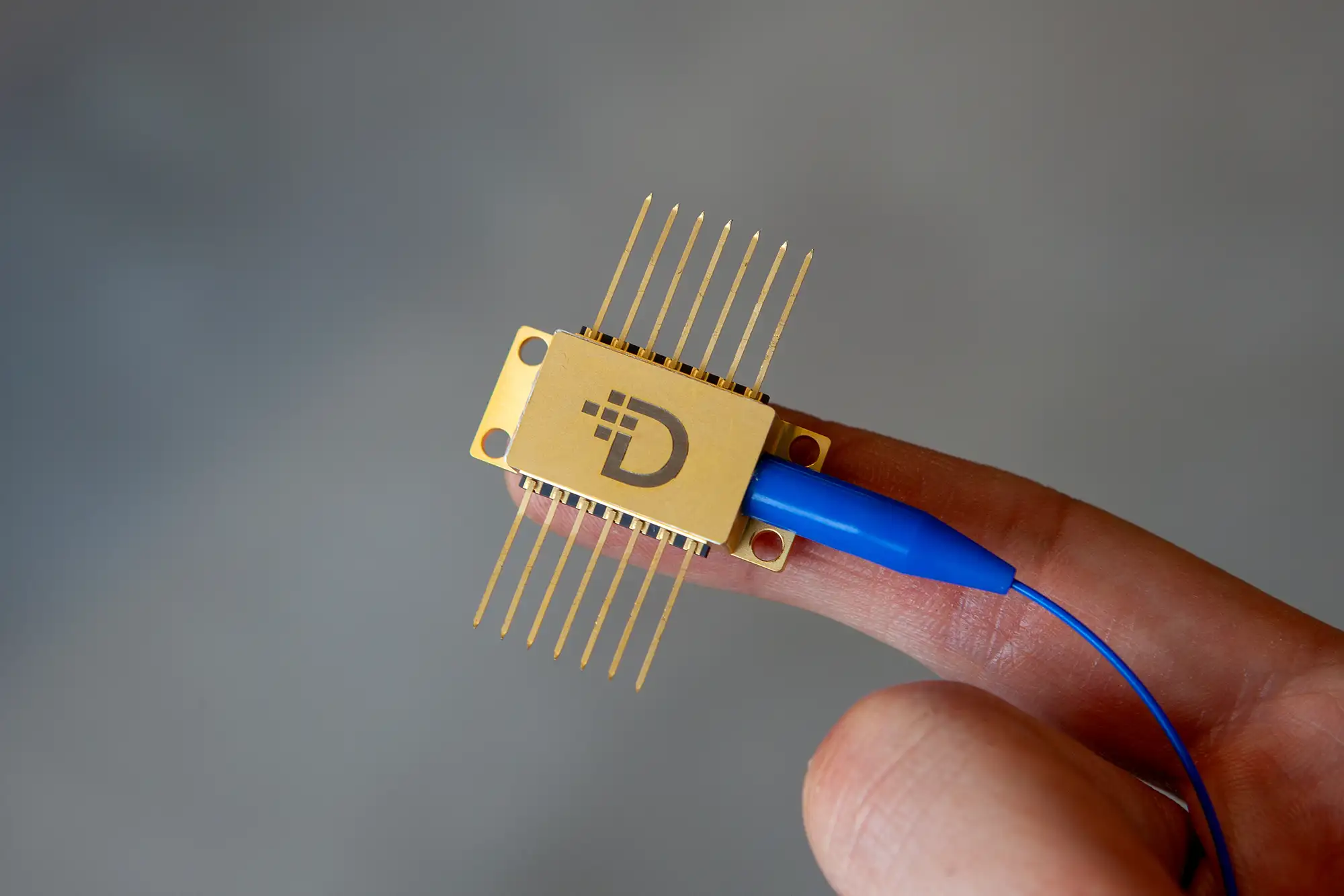

Butterfly package
Key specifications
Model DLT-NL-1550 and DLT-FT-1550
Wavelength (NL & FT)
1550 nm
Intrinsic linewidth (NL & FT)
< 50 Hz
Integrated linewidth (NL & FT)
< 5 kHz

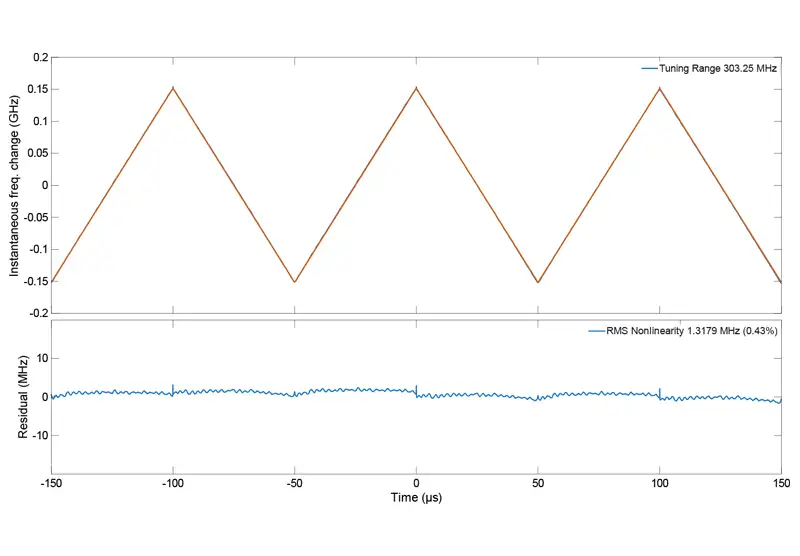

Frequency modulation range (FT)
0.35 GHz
Frequency modulation bandwidth (FT)
> 2 MHz

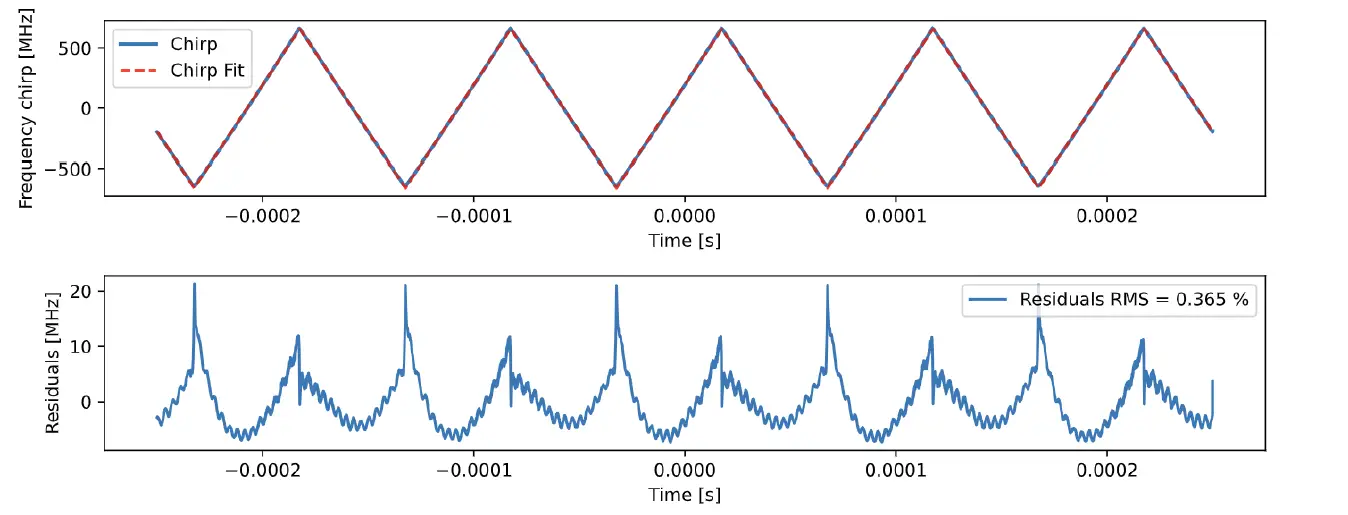

Chirp nonlinearity (FT)
< 0.3 % rms (10-100kHz sweep rate)
