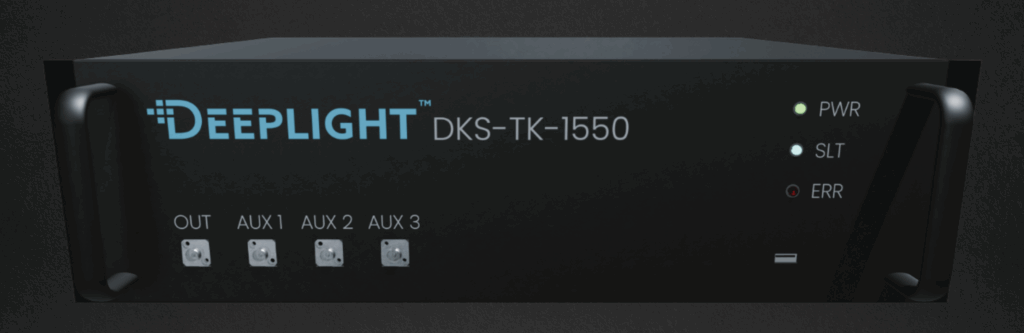

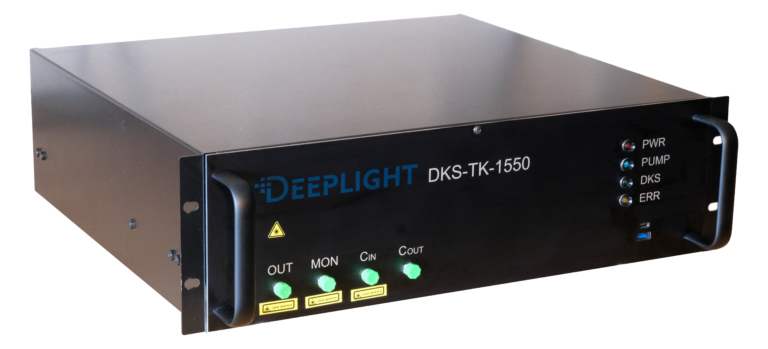

Deeplight microcomb turn-key system
Rack-mountable, high-stability frequency comb platform
Chip-scale microcomb technology is enabling a new generation of optical communications, sensing, and precision metrology. Deeplight’s turn-key DKS system delivers robust single-soliton operation in a compact 19” rack-mount form factor, built on our ultra-low-loss Si₃N₄ PIC platform for high coherence, stability, and scalability.
Key features
Plug-and-play operations
Customizable free spectral range
High comb line power
Key specifications
Central wavelength
1550 nm
Free spectral range
10-1000 GHz
Power of 10 central lines
-5 to +5 dBm
Tooth intrinsic linewidth
< 10 kHz

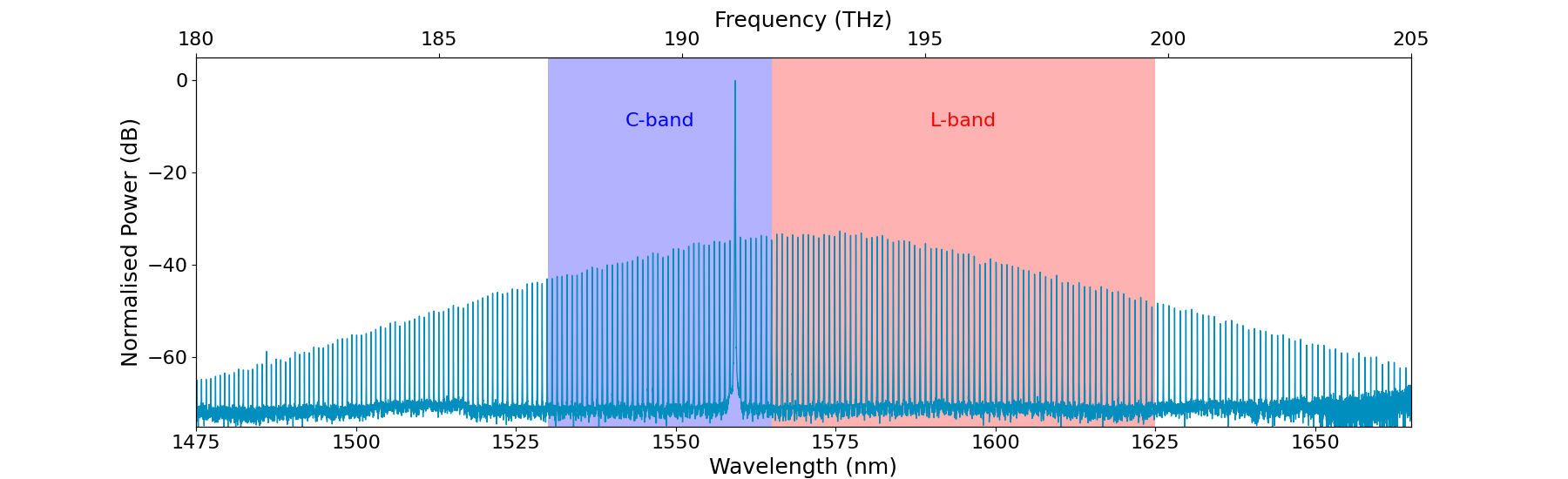

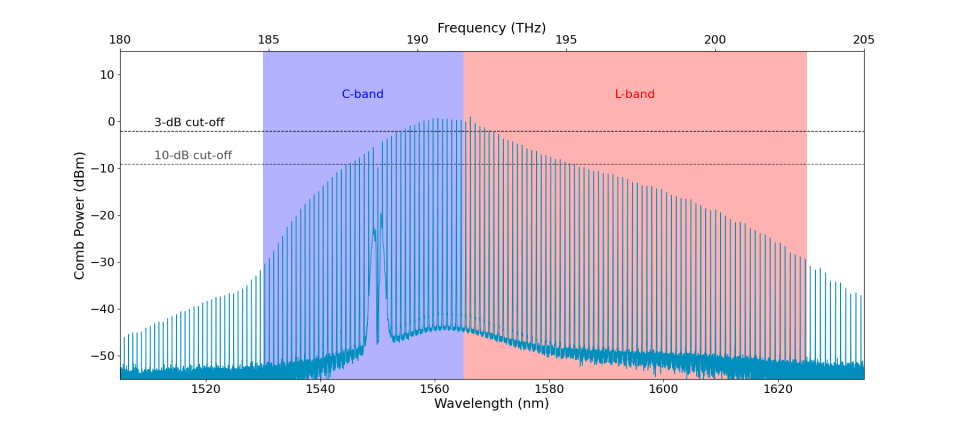

Optical spectrum for a 100 GHz device
Interested in the Deeplight microcomb turn-key system?
And want to know more about additional features, manuals or pricing?
Used in optical communications, sensing, precision metrology and quantum technologies.
