High speed narrow-linewidth lasers
Based on the newest advances in Thin-Film Lithium Niobate photonic circuits, our TFLN-based narrow linewidth lasers give access to low voltage, high speed and high depth frequency modulation.
Key features
Deep modulation
10 GHz
High modulation bandwidth
> 10 MHz
Modulation efficiency
500 MHz/V
Key specifications
Model DLT-FFT-1550
Wavelength
1550 nm
Intrinsic linewidth
< 5 kHz
Integrated linewidth
< 200 kHz

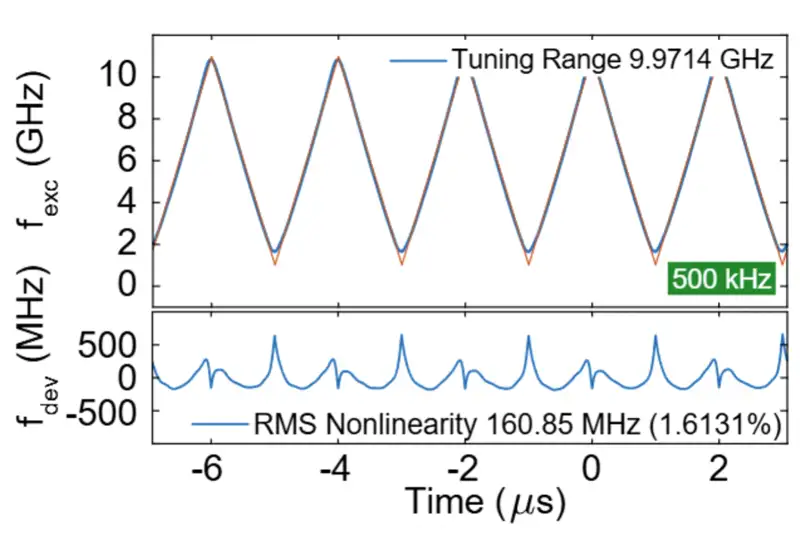

Frequency modulation range
> 5 GHz
Frequency modulation bandwidth
> 10 MHz
Chirp nonlinearity
< 3 % rms (100-1000kHz sweep rate)
Key specifications
Model DLT-FFT-1550
Wavelength
1550 nm
Intrinsic linewidth
< 5 kHz
Integrated linewidth
< 200 kHz
Frequency modulation range
> 5 GHz
Frequency modulation bandwidth
> 10 MHz
Chirp nonlinearity
< 3 % rms (100-1000kHz sweep rate)
